AX-Pro

HScope supports the following models (only Analog mode):

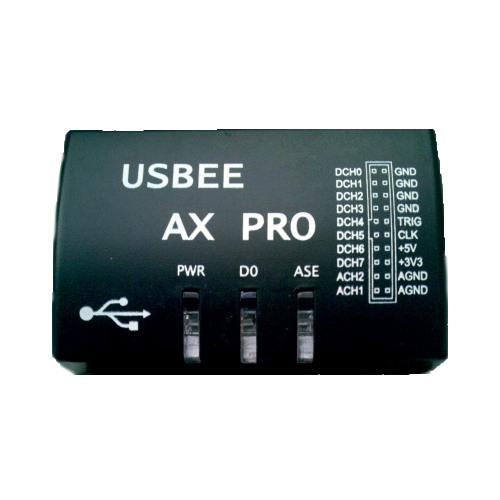

  • USBee AX Pro

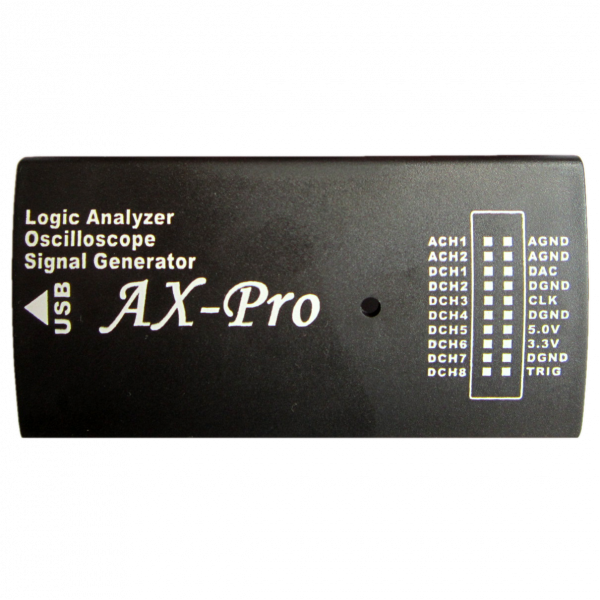

  • Armfly AX Pro

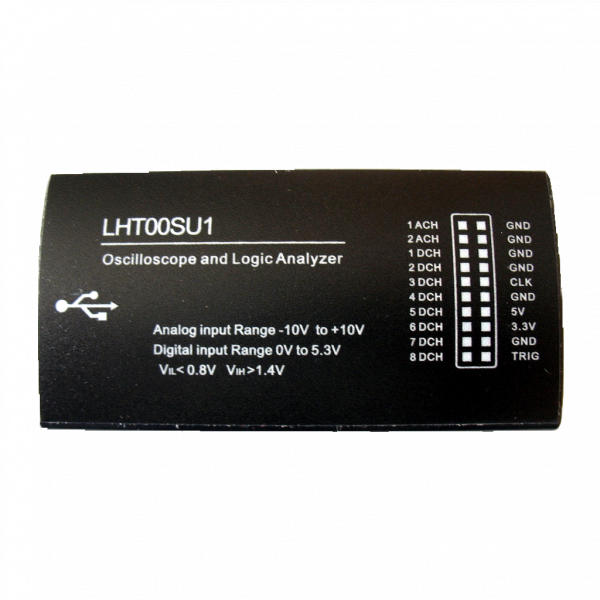

  • LHT00SU1

Specifications *

  • 1 Channel
  • Effective ADC bits (without error): 6-8 bits
  • Min sampling rate: 500 Sa/s
  • Max sampling rate (1 channel): 24 MSa/s
  • Input range: ±10V
  • Number of samples each scan: 1024 Sa
  • Waveform update rate (2 channels, rate >= 100KSa/s): 30 wfms/sec
  • Roll Mode: supported
  • AC/DC: software (not present in the hardware)

*Provided by HScope

Modules Support

  • Automotive Module: supported up to 125KSa/s real-time
  • Audio Module: supported

License

All these devices works with the license ARMFLY AX-Pro.
