Description

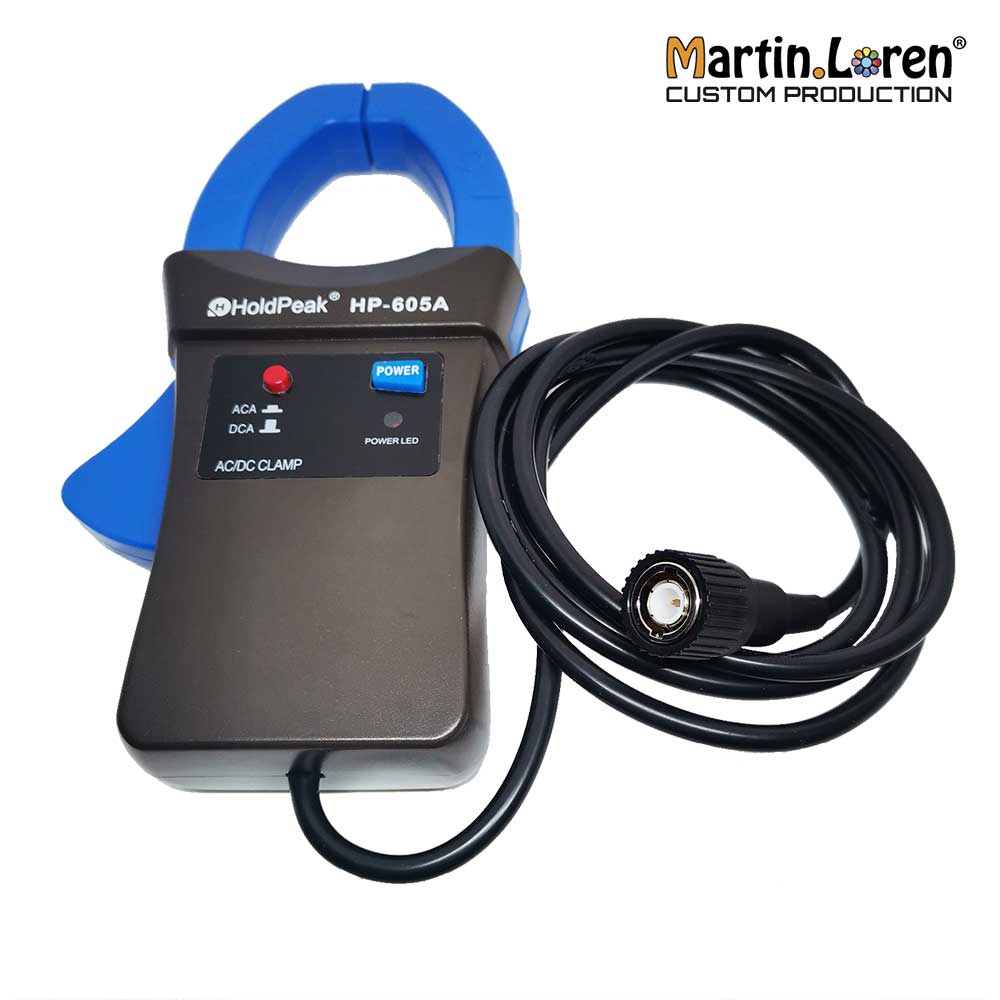

Modified version of the HP-605A Current Clamp with BNC connector for oscilloscope use.
Note: from 2024 version this clamp is modified to have better performances.
Item specifications
- Brand Name: Martinloren (HoldPeak mod. version)
- Original Model: HP-605A
- Measuring Range: AC/DC 600A Current
- Signal output: 1mV/1A
- Base Noise: about 0.5A peak-peak (before 2025 version, about 2A peak-peak – noise at 10KHz)
- Accuracy: ±(2.5%rdg+5dgt)
- Auto-zero function to be set in HScope (Probes configuration)
- Jaw Size: 40 mm
- PVC BNC cable, 1.5m
-
Battery Type: 9 V – rechargeable
- Dimensions:175*80*35.5mm
- Bandwidth: 10kHz (in the 2025 Edition; previously it was 2kHz)
- Weight: 320g
Package Contents
- 1 x Current Clamp
- 1 x 9V Rechargeable Battery (already installed inside the current clamp)
- 1 x USB Type-C cable to charge the battery
First Installation / Recharge
- Remove the 3 screws in the back of the device
- Recharge the 9V battery with a common USB Type-C phone charger, and place back in its compartment
- Close the device back cover
Usage Notes
To increase the sensitivity and measure low currents you may create a wire winding with several coils that will increase the magnetic flux in the sensor.
- 2 turns: range 300A, signal output: 2mV/1A
- 10 turns: range 60A, signal output: 10mV/1A
- Use specific HScope probe or,
- Use 2kHz low-pass software filter for having clean waveforms with max bandwidth.
- 2024 Version: use 8kHz low-pass software filter for having clean waveforms with max bandwidth.
- 2025 Version: use 30kHz low-pass software filter for having clean waveforms with max bandwidth.
Original vs MartinLoren 2024 Version
This amp clamp is a modified version of the original. This version provides:
- BNC connection for oscilloscopes
- Lower noise
Comparison Tests
Tests comparing this current clamp with other models. Credits to Javier.
