Description
Hand-held portable USB powered Oscilloscope. Ideal for on-the-fly measurements or home labs.
-
- Extension port for DIY || Optional modules (logic analyzer/signal generator//DIY modules… )
- Waveform recording and playback || Serial bus decoding || Buffer waveform thumbnail || Waveform comparison reference || Over-voltage warning.
- Zoom in/out || Mouse wheel control || Auto measurement & cursor/ruler measurement || Annotations || Auto set || Save as image || Save as file || Print.
- 72 hours data logger || Vertical resolution: 8~13 bit (HiRes mode) || Waveform persistence.
- Supported by HScope (need to purchase a separate license)

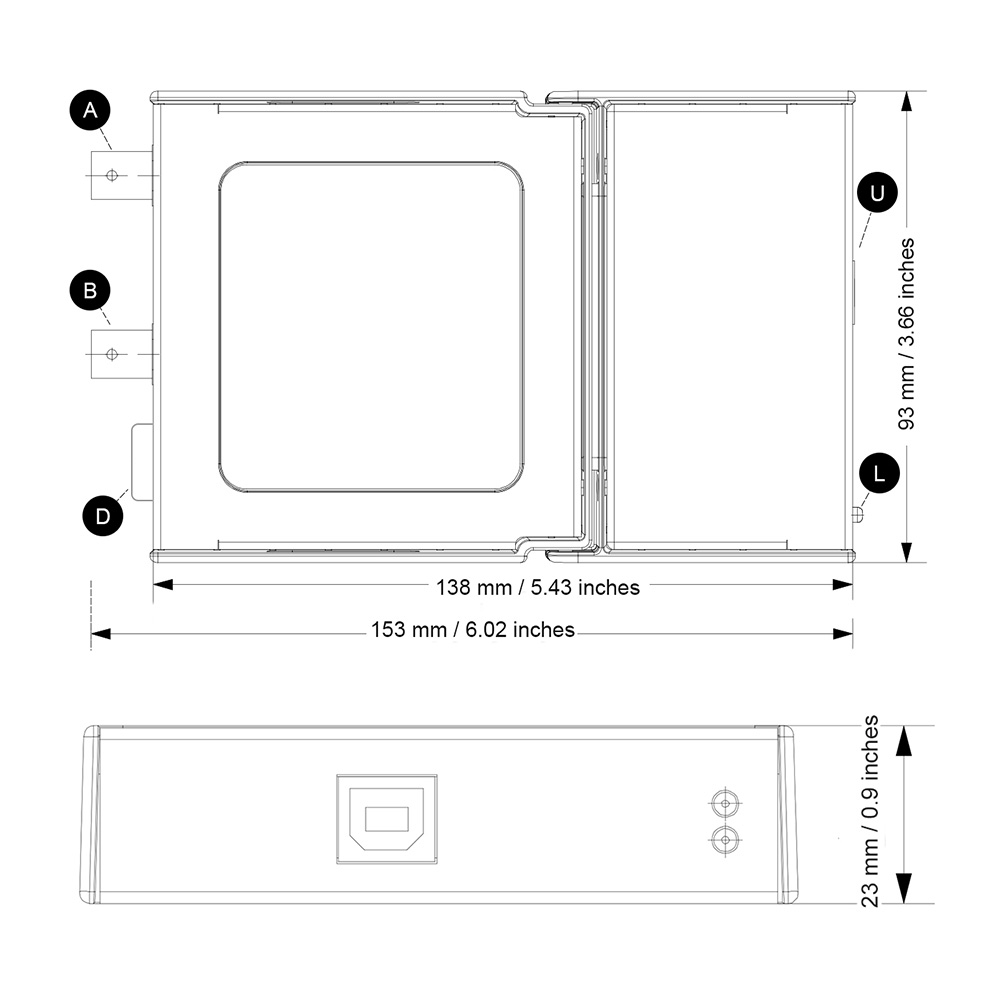

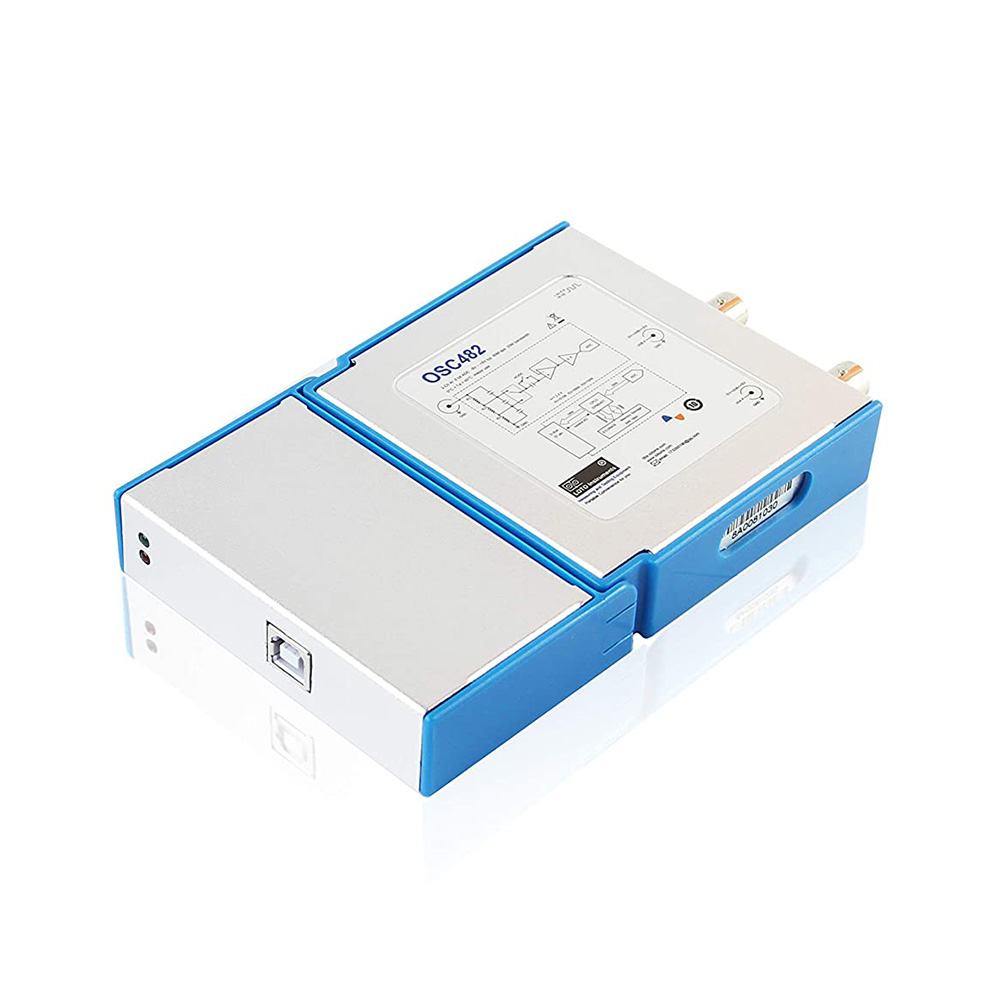

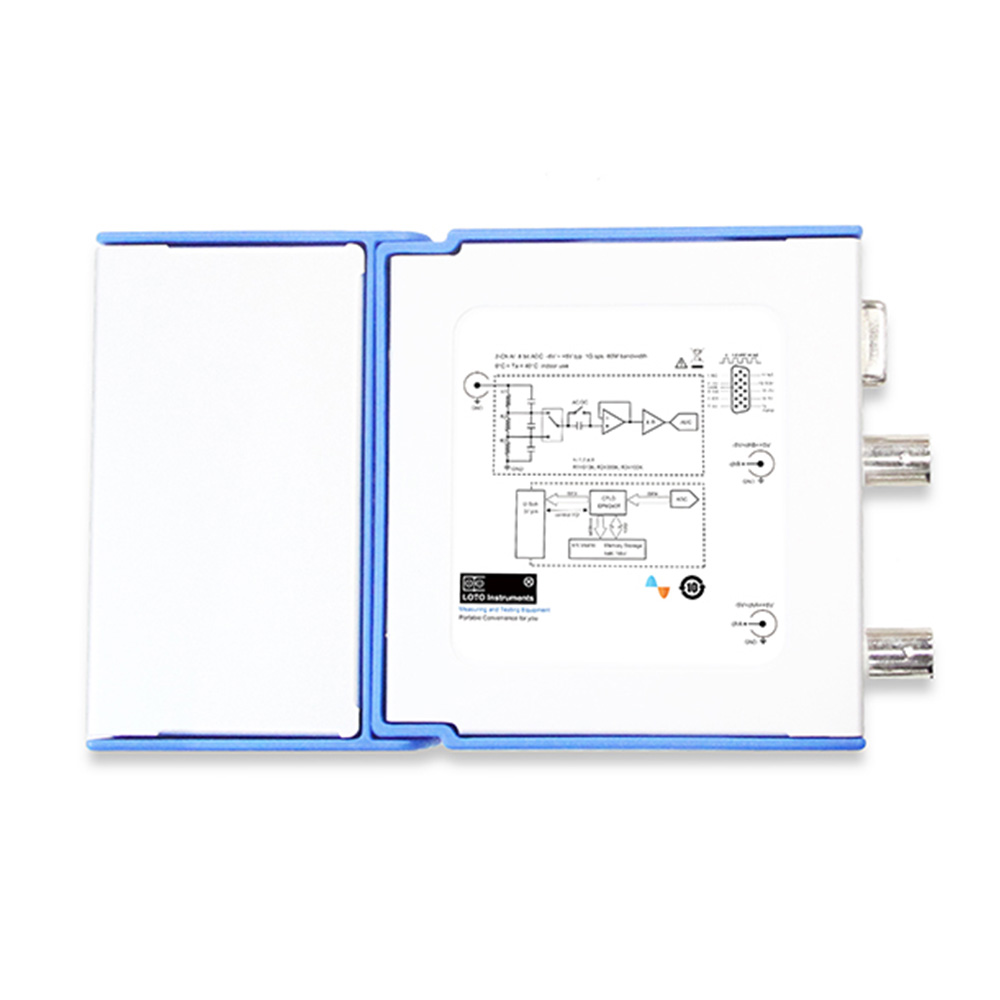

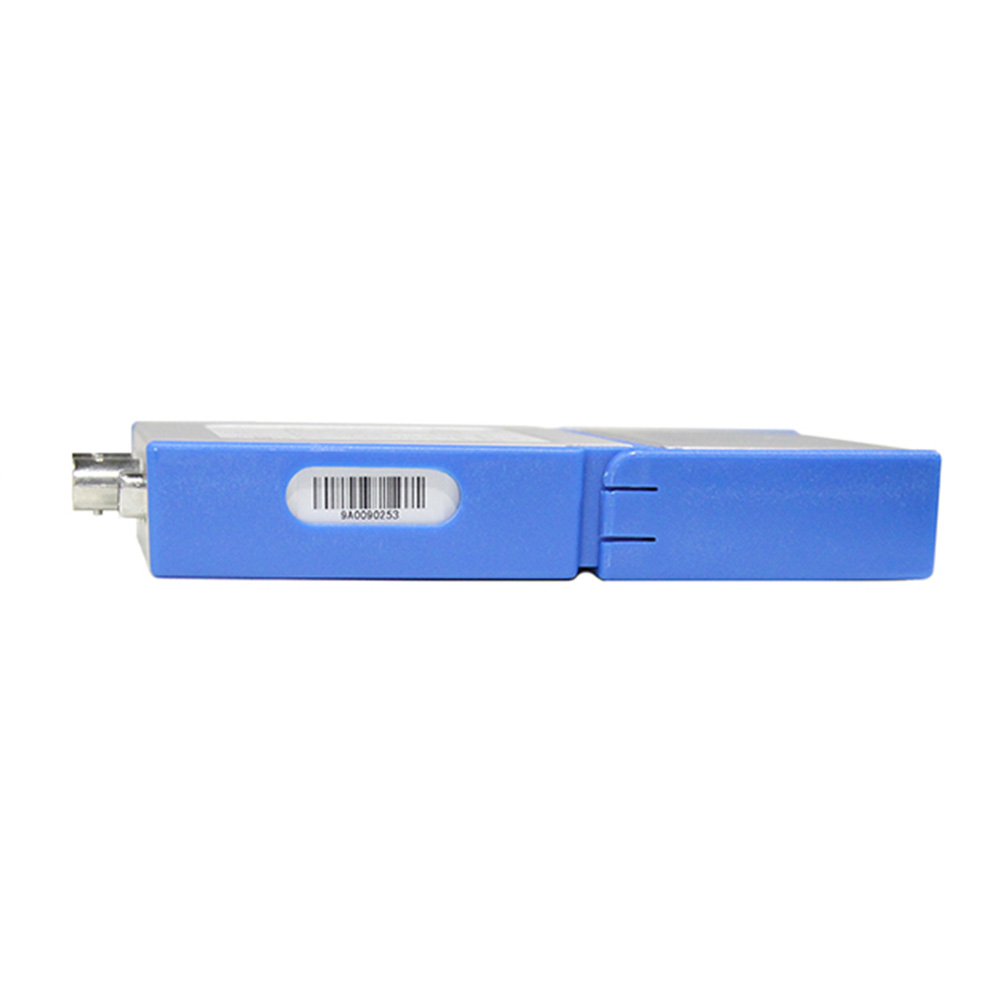

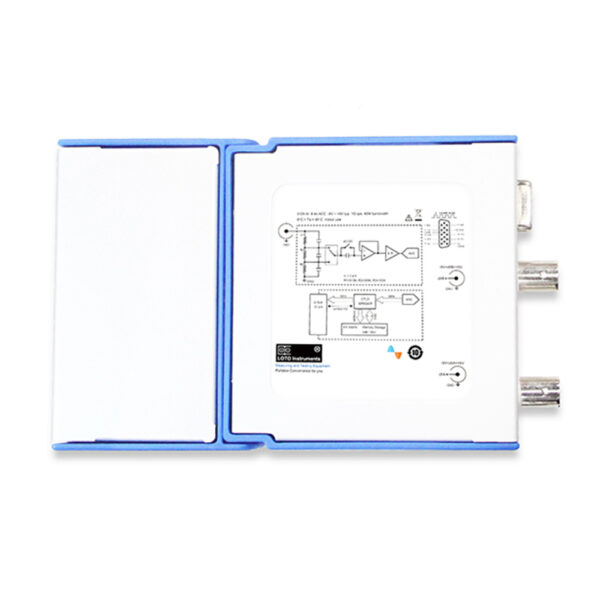

- Size: 15.25 x 9.32 x 2.31 cm
(Photos may not reflect the latest product or the details of the specific model)
Specifications
- Vertical resolution: 8 bit hardware, 13 bit oversampling via software
- Sampling rate: 48MSa/s
- Interpolation between samples: linear or sin(x)/x
- Acquisition modes: normal, high resolution, top detection
- Screen layout: 10 div horizontally and vertically
- Analogue bandwidth: 2 x 20 MHz
- Input coupling: AC/DC
- Input impedance: 1 MΩ // 25 pF
- Input sensitivity: 20 mV/div ~ 2 V/div in 7 steps
- Maximum input voltage: ± 60.0 V
- Time base: 25 s/div ~ 50 ns/div in 24 steps
- Trigger source: Channel A rising or falling edge
- Trigger modes: normal or single
- Voltage measurements: peak-to-peak, maximum, minimum, average, RMS
- Time measurements: period, positive pulse width, negative pulse width
- Other measurements: frequency, rise time, duty-cycle
- Fast Fourier Transform: 1,024 ~ 16,000 points
- FFT algorithms: Rectangle, Hanning, Hamming, Blackman
- Mathematical functions: A+B, A-B, A●B, X/Y
- Screenshots: JPG/GIF/BMP format
- Recorder: 20 GB max. file size
- Datalogger sampling interval: 1 s ~ 1 h
- Datalogger logging duration: 1 m ~ 73 h
- Protocol decoding: UART/RS-232/485/422, I²C,CAN
- Operating system: Windows XP, Win7, Win8.1, Win10 (32 bit and 64 bit)
- Power supply: 5 Vdc, 250 mA via USB cable
